FEATURES

* 6x IV-6 Russian VFD tubes (made in 1990-93)
* 2x IV-1 VFD separators (show am/pm and on/off of alarm)
* 32bit STM32F100C8 processor
* 15 parameters
* 20 years lifetime of tubes
* 12/24 hours mode
* 1 Alarm
* 7 bulbs for day of week or effects
* Control up to 7 external devices (in your own firmware)
* Fade at night (increase lifetime of tubes in twice!)
* Fade leading zero
* Smooth PCB routing
* Countdown timer 99days:23hour:59mins:59sec
* Full remote control
* USB connection to PC (for update firmware)
* Double Multicolour led glow (independent random color leds and RGB leds under each tube)
* Adjustable brightness of RGB and AUTO leds
* RGB led (6 colors of backlight or autochange color mode)
* 10 modes of switch digits
* 2 modes of separator tubes
* IV-6 tubes works in static mode
* Thermometer
* Temperature format: C or F
* Correction of temperature
* Accurate to +/- 1 minute/year
* Setup of clock accuracy
* Date in format DD.MM.YY or MM.DD.YY
* Backup battery. Data is not lost when power off
* Power source - DC 5V barrel plug 5.5mm/2.1mm ( "+" inside, "-" outside)
* Consuming current - no more 500mA
* Height of pcb with elements only 13 mm
* Noiseless work
* Dimensions of the clock - 135mm x 61mm x 60mm
* Dimensions of the clock case - 165mm x 91mm x 67mm

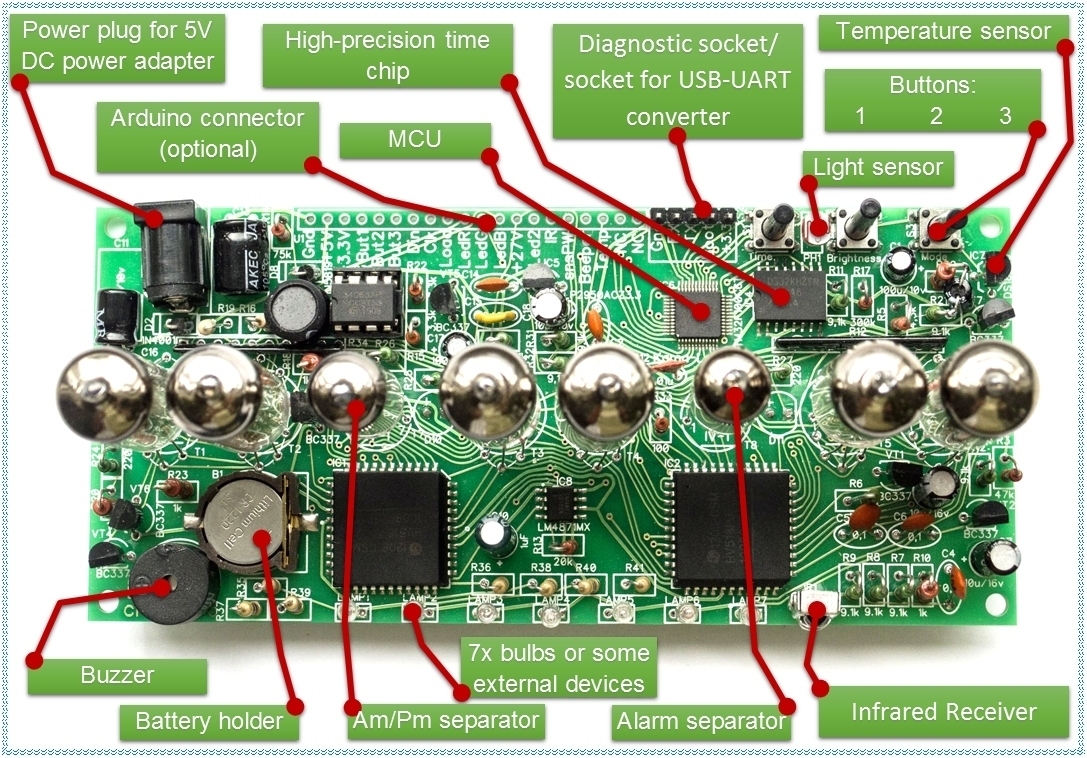

What is on the board

What on the board Tanya IV-6 VFD desk clock

Effects

Tanya IV-6 VFD desk clock. Effects of switching digits.
Tanya IV-6 VFD desk clock. Effects of switching digits.
Tanya IV-6 VFD desk clock. Effects of switching digits.
Tanya IV-6 VFD desk clock. Effects of switching digits.
Tanya IV-6 VFD desk clock. Effects of switching digits.
Tanya IV-6 VFD desk clock. Effects of switching digits.
Tanya IV-6 VFD desk clock. Effects of switching digits.
Tanya IV-6 VFD desk clock. Effects of switching digits.

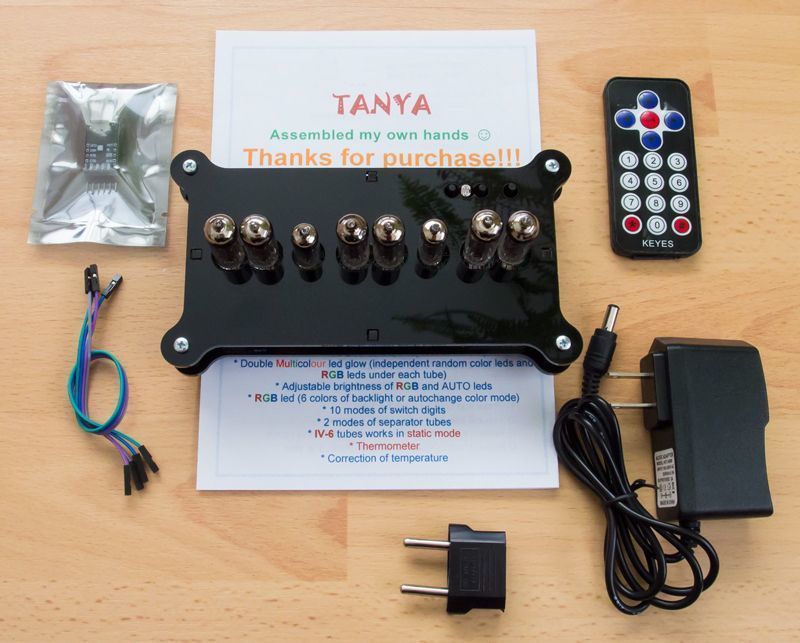

Package include

  • - 1x Clock;
  • - 1x Plastic or wooden case (optional);
  • - 1x Remote control;
  • - 2x Battery;
  • - 1x Universal 5V,2A power supply(AU, EU, UK or US plug);
  • - 1x Operation manual;
  • - 1x USB-UART converter.
Package for Elena IV-11 VFD desk clock

Prices for Tanya IV-6

Tanya IV-6 Wooden case
$80
Free shipping
Tanya IV-6 Clear acryl
$80
Free shipping
Tanya IV-6 Black acryl
$80
Free shipping
Tanya IV-6 Without case
$65
Free shipping
