FEATURES
* 6 IV-22 Russian VFD tubes (made in 1980-84)
* Tubes in sockets
* 2 LED separators
* 32bit STM32F100C8 processor
* 15 parameters
* 20 years lifetime of tubes
* 12h/24h time format
* 1 Alarm
* Noiseless work
* Turn off at night by timer (increase lifetime of tubes in twice!)
* Turn off leading zero
* Brightness of tubes and LEDs change automatically by light-sensor
* Can be powered from micro-USB
* Smooth PCB routing
* Countdown timer 99days: 23hour : 59mins : 59sec
* Full remote control
* USB connection to PC (for update firmware)
* Double Multicolour led glow (independent random color leds and RGB leds under each tube)
* Adjustable brightness of RGB and AUTO leds
* RGB led (6 colors or autochange color mode)
* 10 modes of switching digits
* 2 modes of work separator LEDs
* IV-22 tubes works in static mode
* Thermometer
* Correction of temperature
* C or F temperature format
* Accurate to +/- 1 minute/year
* Setup of clock accuracy
* Date in format DD.MM.YY or MM.DD.YY
* Backup battery. Data is not lost when power off
* Power source - DC 5V barrel plug 5.5mm/2.1mm ( "+" inside, "-" outside) or Micro-USB
* Consuming current - no more 500mA
* Dimensions of the clock in case - 28mm(L) x 195mm(W) x 85mm(H)

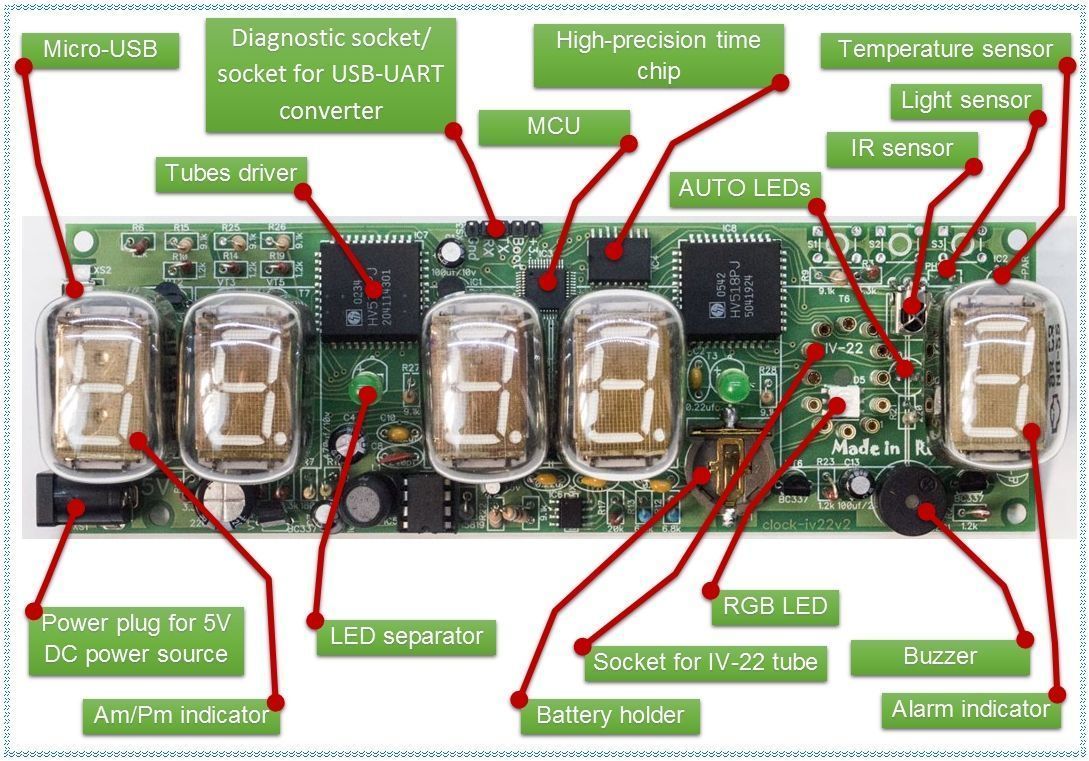

What is on the board
![What on the board Nadia IV-22 VFD desk clock What on the board Nadia IV-22 VFD desk clock](/uploads/s/z/k/y/zky5r3aw4tsz/img/autocrop/4c62d2c586368cb24ee401e8a02cdc41.jpg)
Effects
![Nadia IV-22 VFD desk clock. Effects of switching digits. Nadia IV-22 VFD desk clock. Effects of switching digits.](/uploads/s/z/k/y/zky5r3aw4tsz/img/autocrop/c3824219e904efe6e0aa403bc8b745e7.gif)
![Nadia IV-22 VFD desk clock. Effects of switching digits. Nadia IV-22 VFD desk clock. Effects of switching digits.](/uploads/s/z/k/y/zky5r3aw4tsz/img/autocrop/2761ea57a1131b7613aa9030c15e09fe.gif)
![Nadia IV-22 VFD desk clock. Effects of switching digits. Nadia IV-22 VFD desk clock. Effects of switching digits.](/uploads/s/z/k/y/zky5r3aw4tsz/img/autocrop/71f7e5c67e3d1ddb4e596c748baab0d0.gif)
![Nadia IV-22 VFD desk clock. Effects of switching digits. Nadia IV-22 VFD desk clock. Effects of switching digits.](/uploads/s/z/k/y/zky5r3aw4tsz/img/autocrop/99dd321f78574b75d6a2e982dd6292fb.gif)
![Nadia IV-22 VFD desk clock. Effects of switching digits. Nadia IV-22 VFD desk clock. Effects of switching digits.](/uploads/s/z/k/y/zky5r3aw4tsz/img/autocrop/28771db31109e58a3d57385d0da7787e.gif)
![Nadia IV-22 VFD desk clock. Effects of switching digits. Nadia IV-22 VFD desk clock. Effects of switching digits.](/uploads/s/z/k/y/zky5r3aw4tsz/img/autocrop/0615a6e932d0a4f3a8f105c6b4f48e6b.gif)
![Nadia IV-22 VFD desk clock. Effects of switching digits. Nadia IV-22 VFD desk clock. Effects of switching digits.](/uploads/s/z/k/y/zky5r3aw4tsz/img/autocrop/0cd121417a06816e709984f19cb6202c.gif)
![Nadia IV-22 VFD desk clock. Effects of switching digits. Nadia IV-22 VFD desk clock. Effects of switching digits.](/uploads/s/z/k/y/zky5r3aw4tsz/img/autocrop/0eb2e29ccecd7fd0636bfd9d01e2ab3d.gif)
![Nadia IV-22 VFD desk clock. Effects of switching digits. Nadia IV-22 VFD desk clock. Effects of switching digits.](/uploads/s/z/k/y/zky5r3aw4tsz/img/autocrop/f7d16d82bbede0f859c478d5d3643023.gif)
Package include
- - 1x Clock;
- - 1x Plastic (optional);
- - 1x Remote control;
- - 2x Battery;
- - 1x Universal 5V, 2A power supply(AU, EU, UK or US plug);
- - 1x Operation manual;
- - 1x USB-UART converter.
![Package for Nadia IV-22 VFD desk clock Package for Nadia IV-22 VFD desk clock](/uploads/s/z/k/y/zky5r3aw4tsz/img/autocrop/e8c11cfb57b71a4784473217b27bf024.jpg)
Prices for Nadia IV-22
![Nadia IV-22 Black acryl Nadia IV-22 Black acryl](/uploads/s/z/k/y/zky5r3aw4tsz/img/full_y4UyA7dY.jpg)
Nadia IV-22 Black acryl
$
130
Buy
![Nadia IV-22 Clear acryl Nadia IV-22 Clear acryl](/uploads/s/z/k/y/zky5r3aw4tsz/img/full_nqE4ZWmI.jpg)
Nadia IV-22 Clear acryl
$
130
Buy
![Nadia IV-22 Without case Nadia IV-22 Without case](/uploads/s/z/k/y/zky5r3aw4tsz/img/full_WYyX0OGA.jpg)
Nadia IV-22 Without case
$
115
Buy
