NUMITRON IV-9 CLOCK

Nixie IN-14 desk clock

FEATURES

* 6x IV-9 Russian numitron tubes (made in 1982)
* 2x KM separators (show am/pm and on/off of alarm)
* 32bit STM32F100C8 processor
* 15 parameters
* 12/24 hours mode
* 1 Alarm
* Fade at night (increase lifetime of tubes in twice!)
* Fade leading zero
* Smooth PCB routing
* Countdown timer 99days:23hour:59mins:59sec
* Full remote control
* USB connection to PC (for update firmware)
* Double Multicolour led glow (independent random color leds and RGB leds under each tube)
* Adjustable brightness of RGB and AUTO leds
* RGB led (6 colors of backlight or autochange color mode)
* 10 modes of switch digits
* 2 modes of separator tubes
* IV-9 tubes works in static mode
* 6x Russian chips KR514ID2 in sockets
* Thermometer
* Correction of temperature
* C or F temperature format
* Accurate to +/- 1 minute/year
* Setup of clock accuracy
* Date in format DD.MM.YY or MM.DD.YY
* Backup battery. Data is not lost when power off
* Power source - DC 5V barrel plug 5.5mm/2.1mm ( "+" inside, "-" outside)
* Clock can powered from USB-port (if your USB-port can provide more than 500mA ONLY)
* Consuming current - 900mA
* Noiseless work
* Dimensions of the clock - 102mm x 50mm x 50mm
* Dimensions of the clock in plastic case - 132mm x 81mm x 65mm

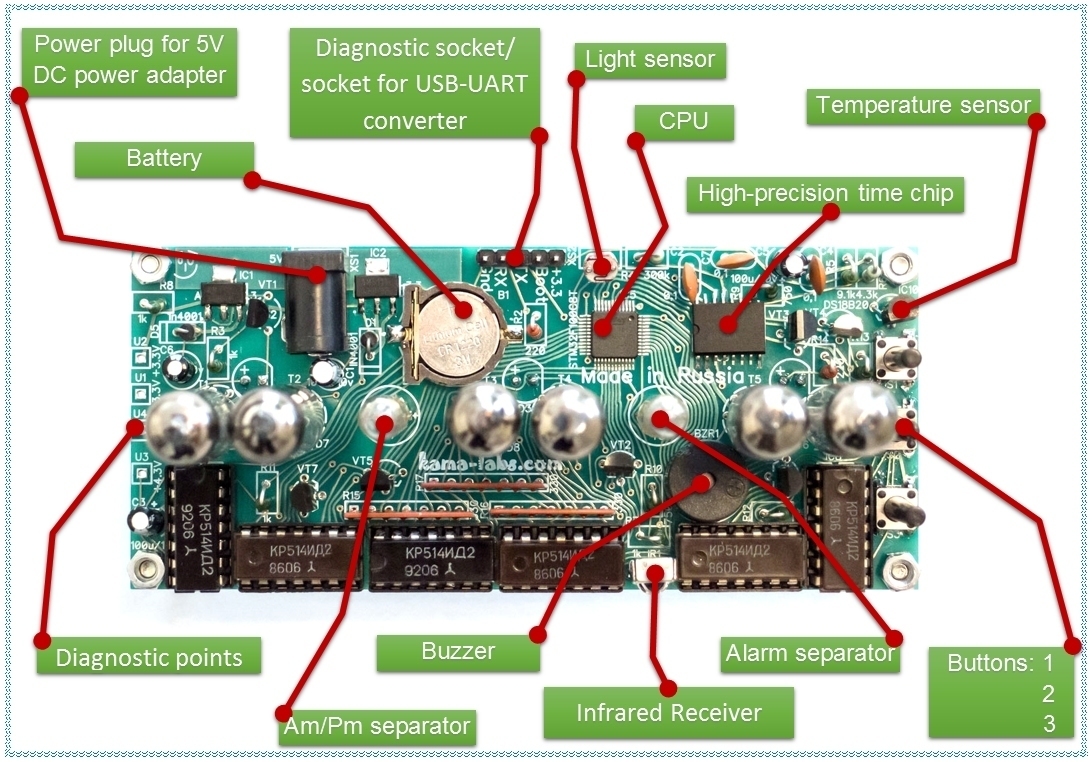

What is on the board

What on the board Numitron IV-9 desk clock

Effects

Numitron IV-9. Effects of switching digits.
Numitron IV-9. Effects of switching digits.
Numitron IV-9. Effects of switching digits.
Numitron IV-9. Effects of switching digits.
Numitron IV-9. Effects of switching digits.
Numitron IV-9. Effects of switching digits.
Numitron IV-9. Effects of switching digits.

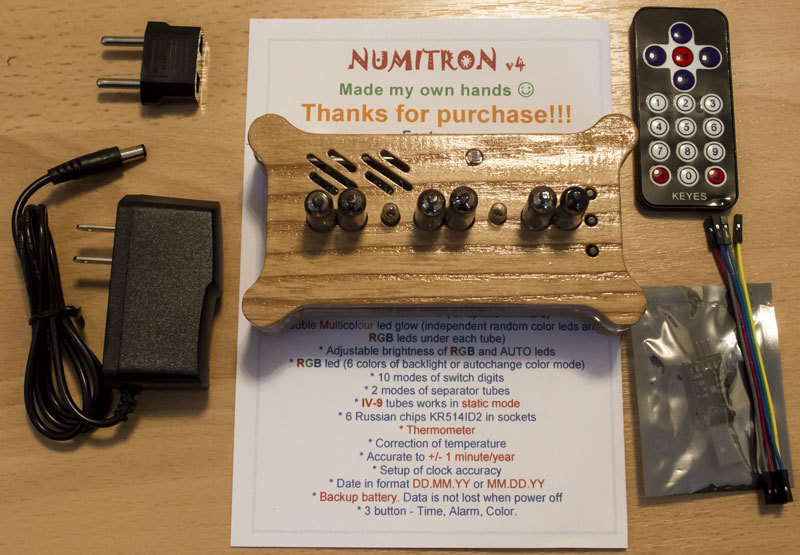

Package include

  • - 1x Clock;
  • - 1x Plastic or wooden case (optional);
  • - 1x Remote control;
  • - 2x Battery;
  • - 1x Universal 5V, 2A power supply(AU, EU, UK or US plug);
  • - 1x Operation manual.
Package for Numitron IV-9 clock

Prices for Numitron IV-9

Numitron IV-9 Wooden case
Numitron IV-9 Wooden case
$
130
Buy
Numitron IV-9 Clear acryl
Numitron IV-9 Clear acryl
$
130
Buy
Numitron IV-9 Black acryl
Numitron IV-9 Black acryl
$
130
Buy
Numitron IV-9 Without case
Numitron IV-9 Without case
$
115
Buy
