SONYA IN-4 NIXIE CLOCK

FEATURES

* 6x IN-4 Russian NIXIE tubes (made in 1982-86) * 4x INS-1 NIXIE separators (show am/pm and on/off of alarm) * 32bit ESP32 processor * Full control of clock via Wi-Fi * Wi-Fi connection to PC or smartphone * Motion sensor (no need burn tubes when nobody near) * Synchronizing time and date from NTP server * Over-the-air firmware update * 12/24 hours mode * 1 Alarm * Temperature / humidity / pressure sensor * 8 animations for digits * Off clock at night by schedule * Fade leading zero * Smooth PCB routing * Support remote control * High-precision onboard time chip DS3231 * Double Multicolour led glow (independent random color leds and RGB leds under each tube) * Adjustable brightness of RGB and AUTO leds * RGB led (6 colors of backlight or autochange color mode) * Adjustable high-voltage block. 150-190 volts. * IN-4 tubes works in static mode * Correction of temperature * Accurate to +/- 1 minute/year * Date in format DD.MM.YY or MM.DD.YY or YY.DD.MM * Backup battery. Data is not lost when power off * Power source - DC 12V barrel plug 5.5mm/2.1mm ( "+" inside, "-" outside) * Consuming current - 600mA * Noiseless work * Dimensions of the clock in case - 232mm(W) x 52mm(L) x 53mm(H)

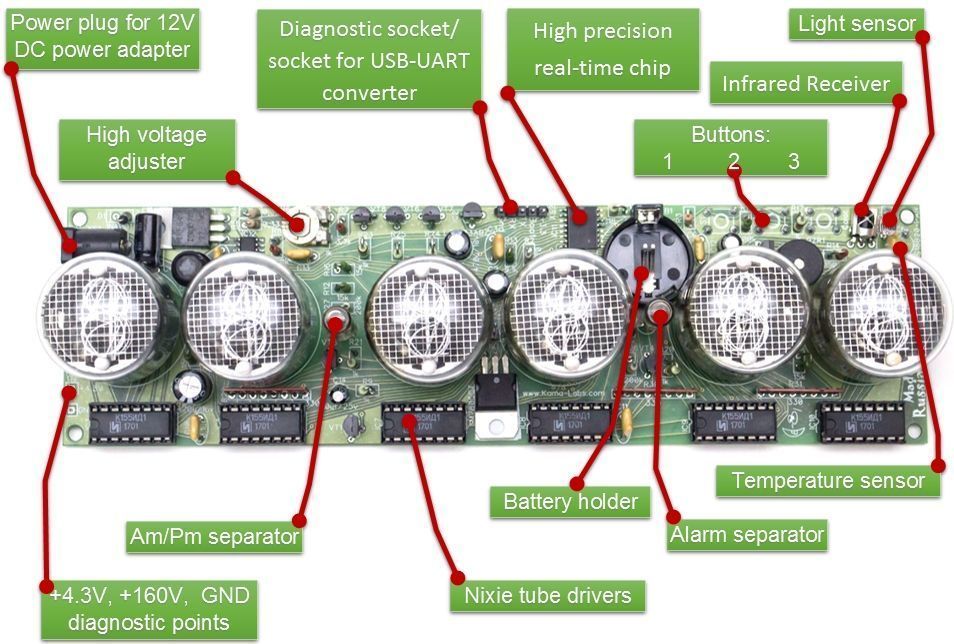

What is on the board

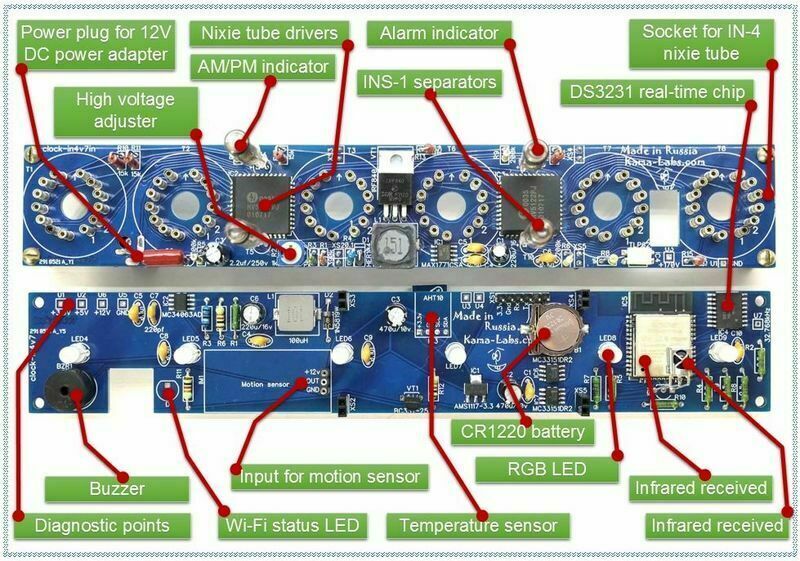

What on the board Sonya IN-4 nixie clock

Wi-Fi connection to clock

Wi-Fi settings of Sonya IN-4 nixie clock
Wi-Fi settings of Sonya IN-4 nixie clock
Wi-Fi settings of Sonya IN-4 nixie clock
Wi-Fi settings of Sonya IN-4 nixie clock
Wi-Fi settings of Sonya IN-4 nixie clock

Animations

KamaLabs. Animations of Sonya IN-4 nixie desk clock

Обработка видео...

Package include

  • - 1x Clock;
  • - 1x Plastic or wooden case (optional);
  • - 1x Remote control;
  • - 2x Battery;
  • - 1x Universal 12V, 1A power supply(AU, EU, UK or US plug);
  • - 1x Operation manual;
  • - 1x USB-UART converter.
Sonya IN-4 Wooden case
Sonya IN-4 Wooden case
$
175
Buy
Sonya IN-4 Without case
Sonya IN-4 Without case
$
160
Buy
